Product Description

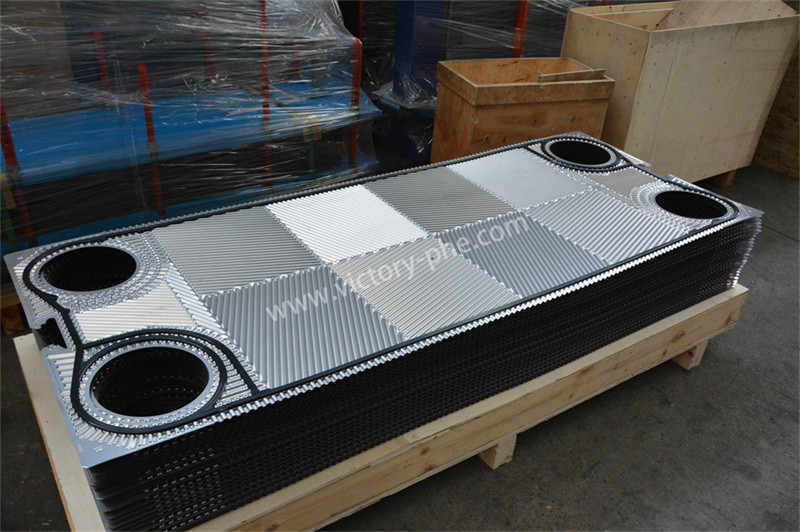

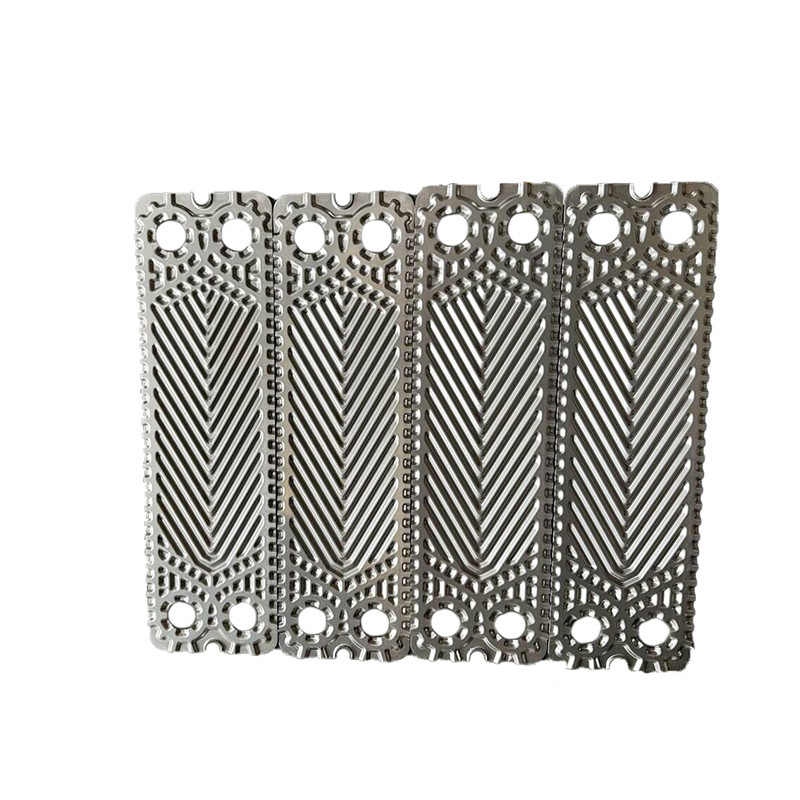

Heat Exchanger Plates
1Plate heat exchanger is a new type of high-efficiency heat exchanger made of stacked metal plates with a certain corrugated shape. The structural components include plates, gaskets, compression plates (movable compression plates and fixed compression plates), and frames. (upper and lower guide rods, front pillars) and clamping bolts.
2. A thin rectangular channel is formed between each plate. The plates are sealed and guided by sealing gaskets to separate the two cold/hot fluid channels. The cold/hot heat exchange medium flows through respective channels and exchanges heat with the separated plates to achieve the temperature required by the user.
3. Our heat exchanger plates use thermal mixing technology, which can combine the heat transfer and pressure drop of the heat exchanger to make it operate at a better operating point. Internal bypass, dual flow channel technology and unequal flow cross-sectional area assembly provide a perfect solution for working conditions where the media flow rate on both sides is significantly different.
Heat Exchanger Plates material
1. Stainless steel SUS304 SUS316L
Purified water, river water, food oil, mineral oil
2. Industrial pure titanium and titanium-palladium alloyTi tanium and Pal ladium
Sea water, salt water, salt compounds
3. Hastelloy Alloy
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
4. Nickel
High temperature and high concentration caustic soda
| Brand |
Model |
|
M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M
M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M,T20P,TL35B
P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15B
|
| Material |
Specification |
| Stainless Steel |
SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy |
TAi TAi-Pd |
| Hastelloy |
C276 D205 B2G |
| Nickel |
Ni200 Ni201 |
| Molybdenum |
254 |
Applacations
The application areas of heat exchanger plates are as follows:
1. Widely used for Hotels
2. Garment Shops
3. Building Material Shops
4. Machinery Repair Shops
5. Manufacturing Plant
6. Food & Beverage Factory
7. Farms, Restaurant,Retail, Food Shop
8. Printing Shops, Construction works
9. Energy & Mining, Food & Beverage Shops
Q&A
Q: Can I customize samples of heat exchanger plates?
A: Yes,we welcome sample order to test and check quality.
Q : Can you accept mixed batch of different heat exchanger plates and OEM service?
A : Yes,we support mixed models and OEM service.
