Product Description
NBR, HNBR, Or EPDM Gaskets, Which Enhance The Performance And Efficiency Of The Heat Exchanger.

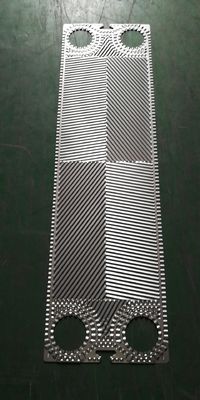

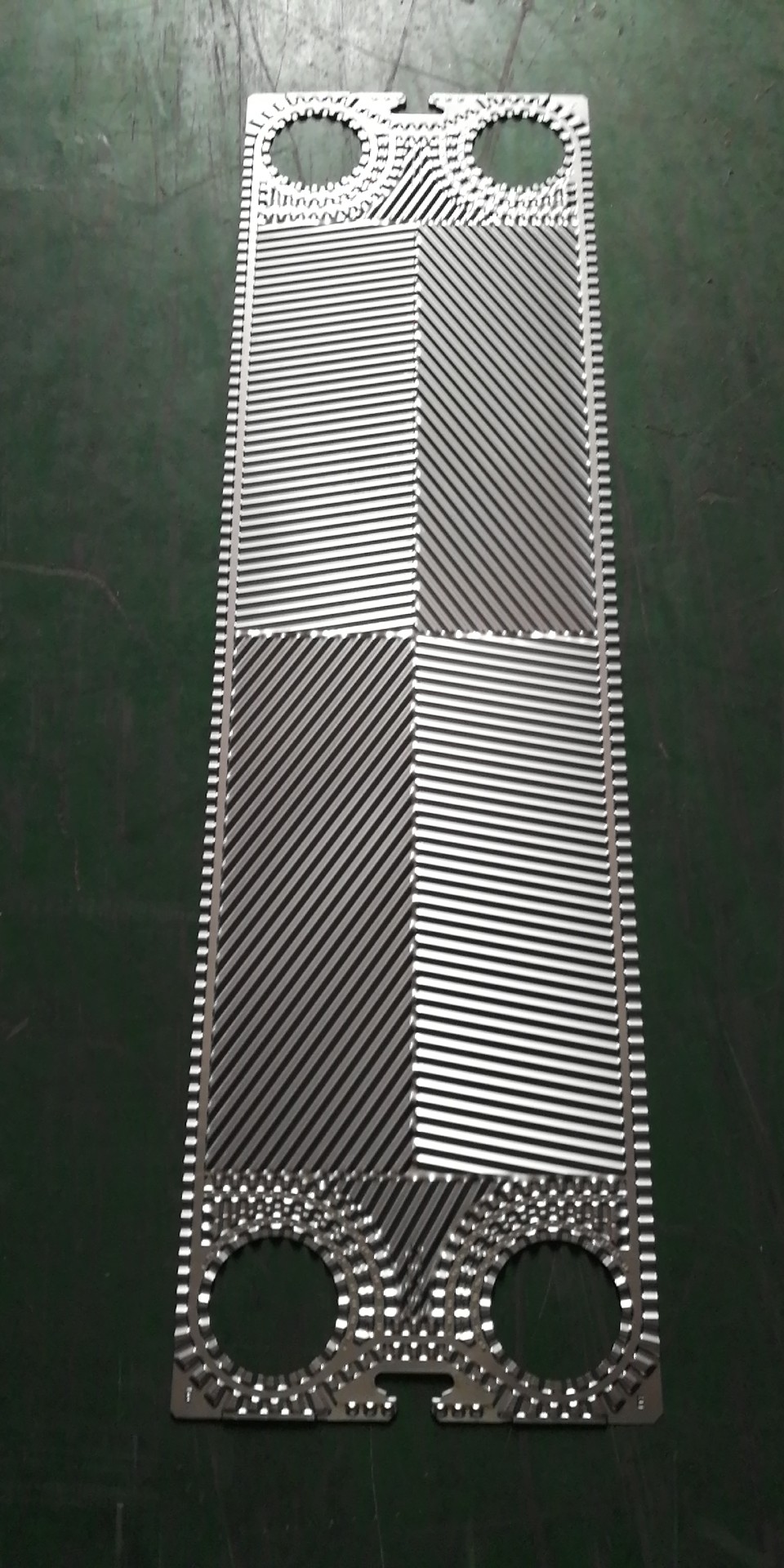

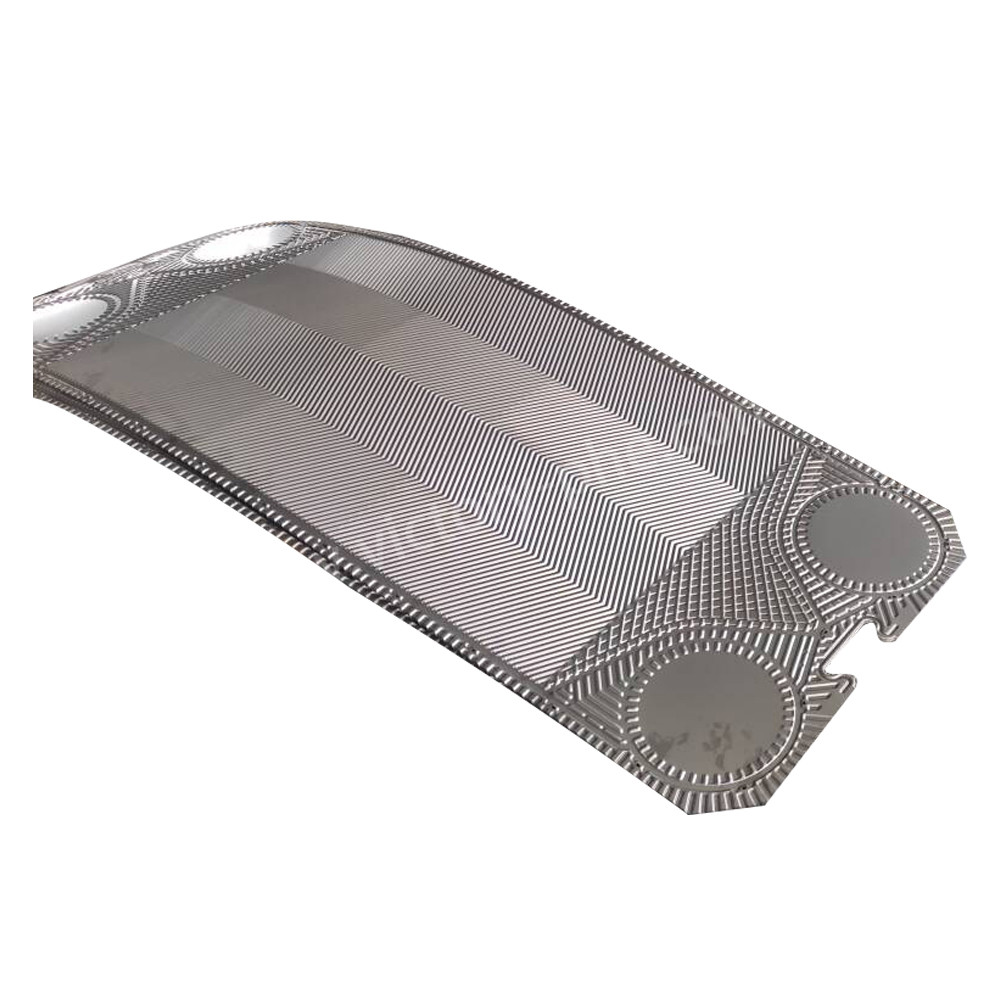

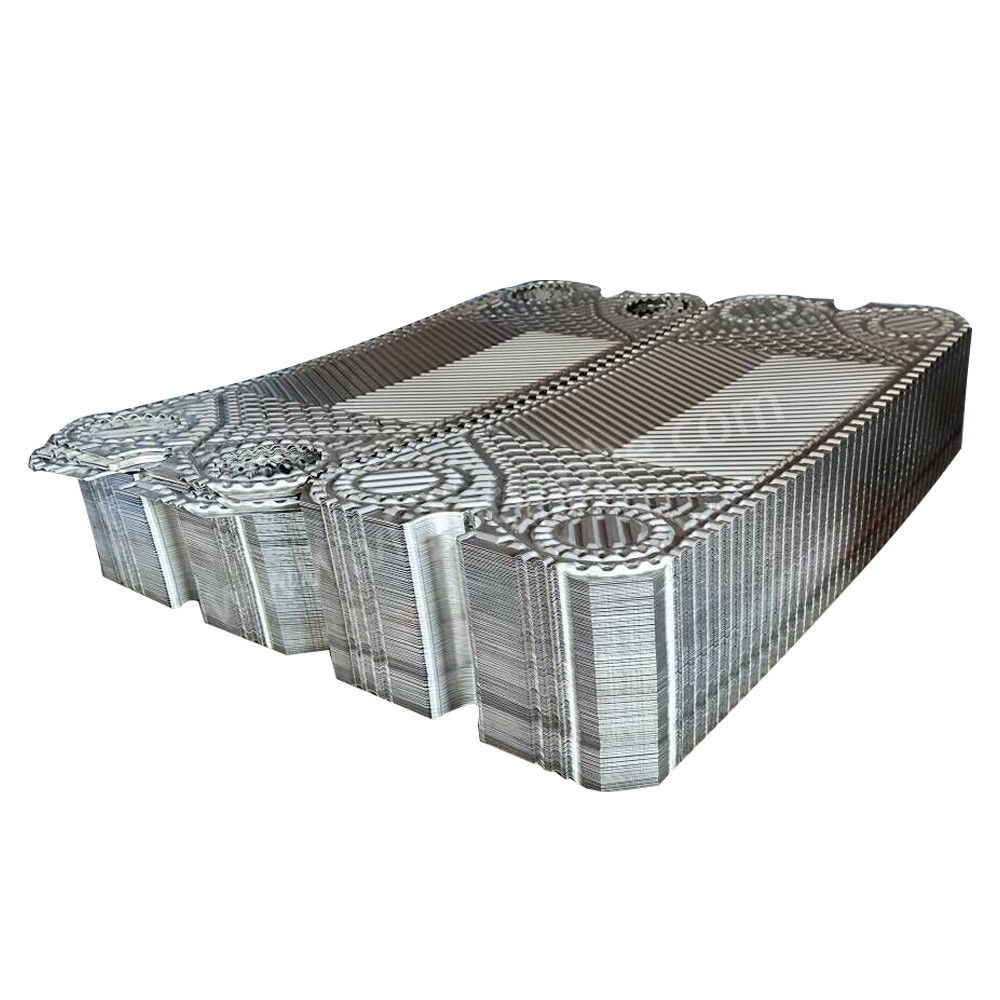

Heat Exchanger Plates
Plate heat exchanger plates are essential components in plate heat exchangers, playing a vital role in enabling efficient heat transfer and facilitating the separation of different media. These plates undergo a meticulous manufacturing process, involving the pressing of corrugated metal sheets with sealing grooves and corner holes, which is crucial for achieving effective heat transfer. The corrugations not only improve heat transfer efficiency but also strengthen the structural integrity of the plates, enhancing the pressure resistance of the plate heat exchanger. Additionally, the presence of these corrugations promotes turbulent flow, reducing the accumulation of deposits or fouling and providing a certain level of self-cleaning capability.
| Brand | Model |
|
M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M, T20P,TL35B,P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15BW |
| Material | Specification |
| Stainless Steel |
SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy |
C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
These products are specifically designed to cater to the needs and specifications of a wide range of manufacturers, including but not limited to , ACCESSEN, GEA (Kelvion), APV, Sondex, Tranter, Hisaka, API, Funke, Vicarb, Mueller, SWEP, Fischer, AGC, Thermalwave, ITT, LHE, and DHP, among others.
Applacations
| Plate material | Suitable for fluids |
| Stainless steel (SUS304.316, etc.) | Purified water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt compounds |
| 20Cr,18Ni,6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Plate heat exchanger plate thickness configuration
