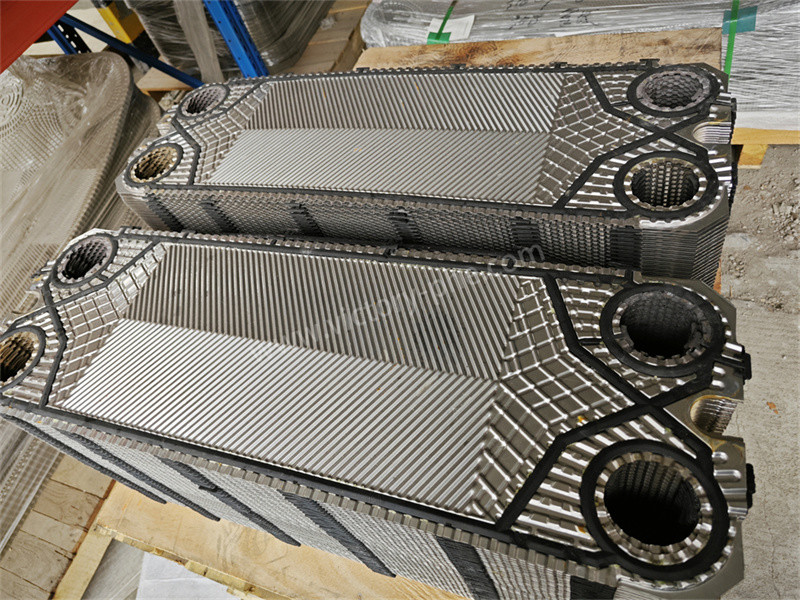

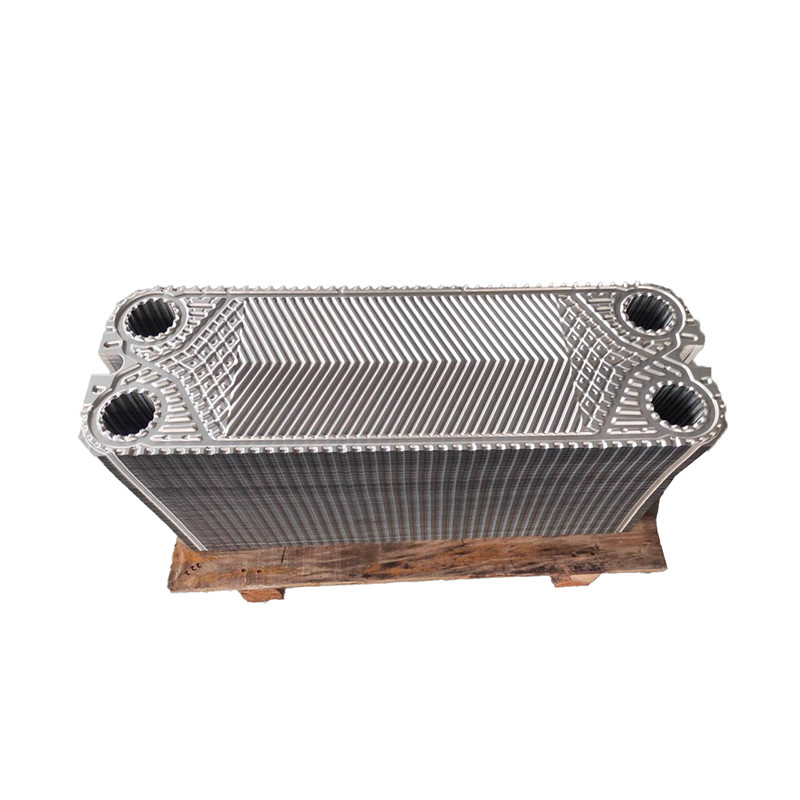

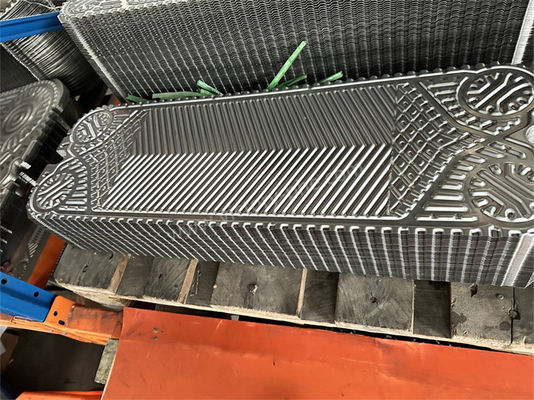

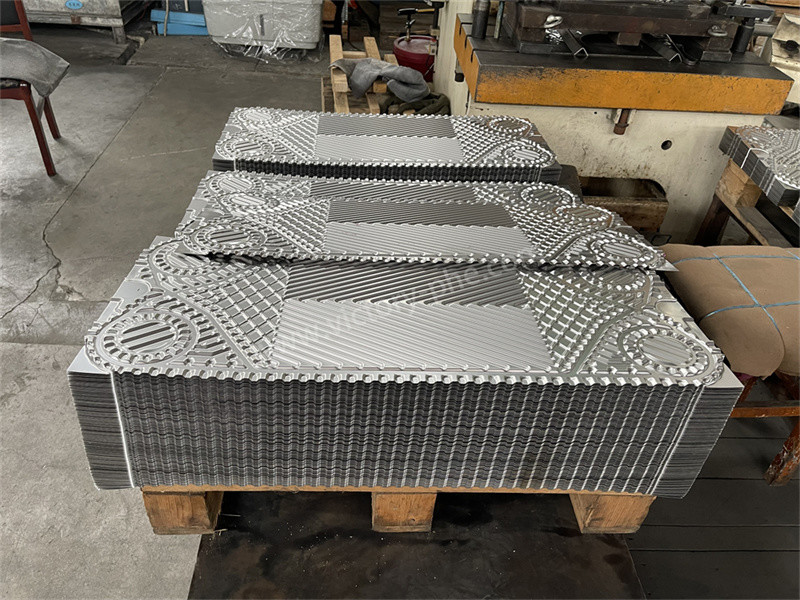

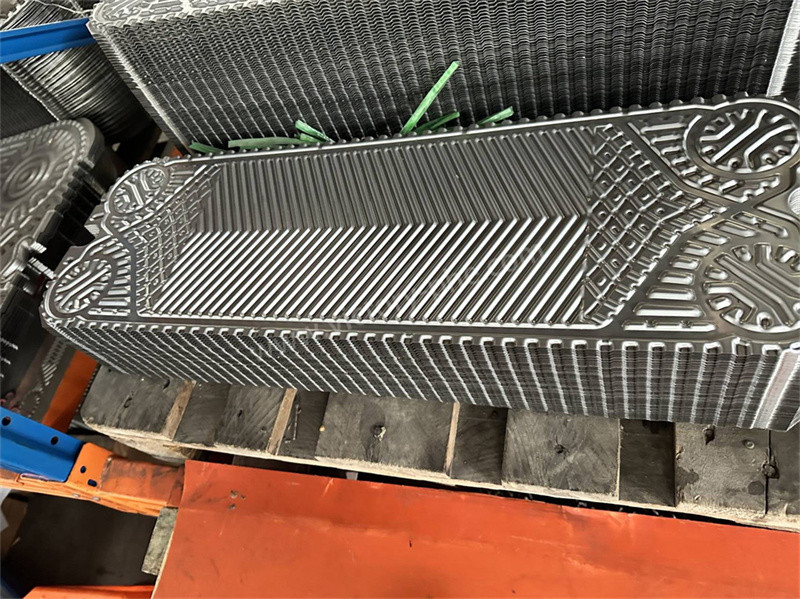

V13 V28 Vicarb Heat Exchanger Plates HVAC And General Industrial Use

Heat Exchanger Plates

 Fully fit for Vicarb V13 V28 V100  plate heat exchanger.

Application:

1. High-Temperature Applications: For processes involving high-temperature fluids or steam, materials with good thermal conductivity and high-temperature resistance are required. Stainless steel, duplex stainless steel, or nickel alloys are commonly chosen for their ability to withstand elevated temperatures without compromising performance.
2. Food and Beverage Industry: In applications where the plate heat exchanger comes into contact with food products, beverages, or pharmaceutical solutions, materials that meet sanitary and hygiene standards are necessary. Stainless steel with a smooth surface finish, such as 316L stainless steel, is often used for its corrosion resistance and ease of cleaning.
3. HVAC and General Industrial Use: For standard HVAC and general industrial applications, materials like stainless steel, carbon steel, and some coated or plated options may be suitable, depending on the specific operating conditions and budget considerations.
4. we can supply whole set plate heat exchanger, plates, mould, gaskets of following models.

Production Process:

• Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
• Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
• Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
• Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
• Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards

Q&A

1. Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer of plate heat exchangers, plates, gaskets, plate mould with 18 years' experience.
