Heat Exchanger Plates

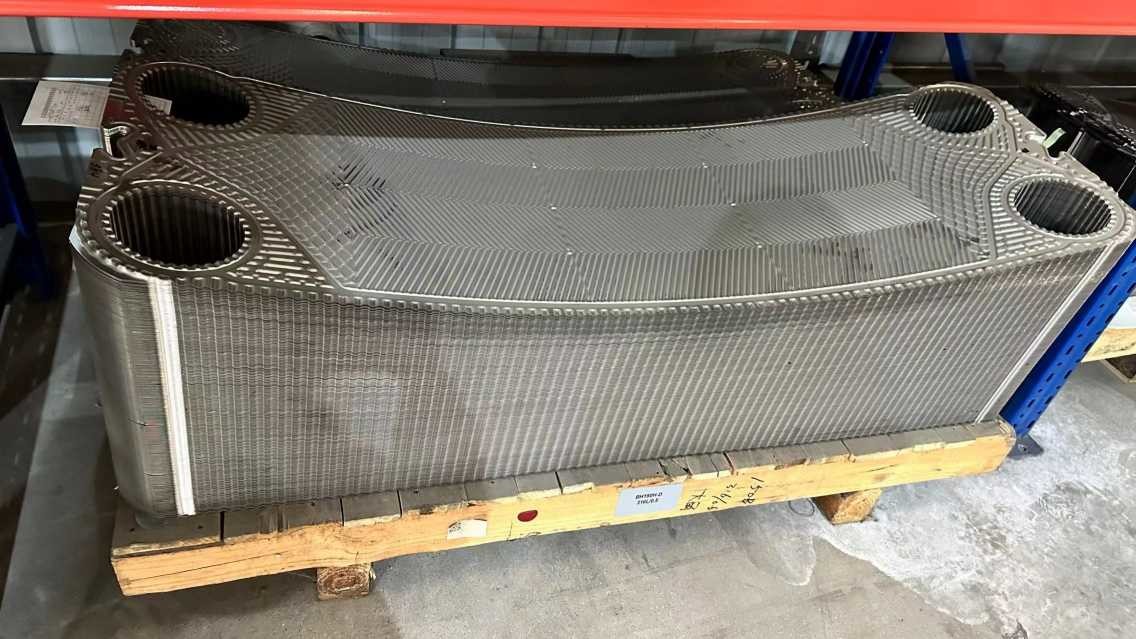

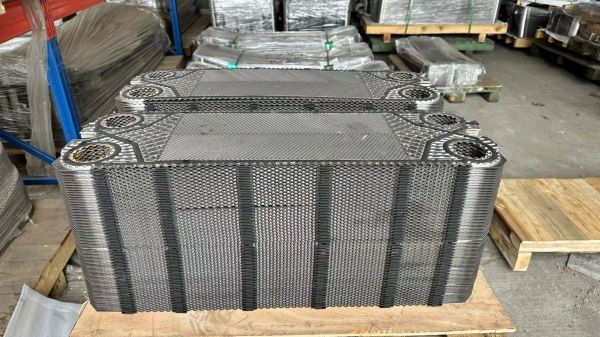

Replacement Plate For Mould V4 V8 V20 Heat Exchanger With NBR Gasket
1. Stainless Steel 304/316 Heat Exchanger Plates are widely used in heating and cooling applications due to their corrosion resistance and high-temperature capabilities. These plates are designed to efficiently transfer heat between two fluids without mixing them, making them ideal for a variety of industrial and commercial processes. They are commonly used in HVAC systems, chemical processing, food and beverage production, and many other industries where precise temperature control is essential.
2. Heat exchanger plates are used in heating, ventilation, and air conditioning systems to transfer heat between the air streams, allowing for efficient temperature control within buildings.
3. Heat exchanger plate is In a heating application, the hot fluid transfers its heat to the colder fluid, raising its temperature. In a cooling application, the cold fluid absorbs heat from the hotter fluid, lowering its temperature.
Heat exchanger plates are commonly used in HVAC systems, refrigeration, and industrial processes for efficient heat transfer between fluids. They offer high heat transfer efficiency, compact size, and the ability to be easily expanded for larger capacity.
For gaskets in Plate Heat Exchangers (PHE), various materials can be used depending on the application requirements. Common gasket materials include:
Nitrile rubber (NBR): Suitable for general-purpose applications with good oil resistance.
EPDM (Ethylene Propylene Diene Monomer): Offers excellent resistance to heat, ozone, and weathering, making it suitable for hot water and steam applications.
Viton (FKM): Provides high chemical resistance and can withstand high temperatures, making it suitable for aggressive fluids and high-temperature applications.
PTFE (Polytetrafluoroethylene): Known for its excellent chemical resistance and non-stick properties, making it suitable for corrosive applications.
Silicone: Offers good temperature resistance and flexibility, often used in food and pharmaceutical applications.
The choice of gasket material depends on factors such as the operating temperature, pressure, chemical compatibility, and specific requirements of the application
| Brand | Model |
| Vicarb | V4,V8,VU8,V13,V20,V28,V45,V60 |
| Material | Specification |
| Stainless Steel | SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy | C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Heat Exchanger Plates material
1. Stainless steel SUS304 SUS316L
Purified water, river water, food oil, mineral oil
2. Industrial pure titanium and titanium-palladium alloyTi tanium and Pal ladium
Sea water, salt water, salt compounds
3. Hastelloy Alloy
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
4. Nickel
High temperature and high concentration caustic soda
Applacations
Heat exchanger plates have a wide range of applications in both heating and cooling processes. Some common applications include:
1.HVAC Systems: Heat exchanger plates are used in heating, ventilation, and air conditioning systems to transfer heat between the air streams, allowing for efficient temperature control within buildings.
2.Refrigeration: In refrigeration systems, heat exchanger plates are utilized to remove heat from the refrigerant, enabling the cooling of the system.
3. Industrial Processes: Heat exchanger plates are employed in various industrial processes such as food and beverage processing, chemical manufacturing, and power generation to control temperatures during production and to recover waste heat.
Q&A
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of plate heat exchangers, plates, gaskets, plate mould with 18 years' experience.
Q: Can I customize samples of heat exchanger plates?
A: Yes,we welcome sample order to test and check quality.
Q:when should use NBR for gasket
A:NBR gaskets are commonly used in Plate Heat Exchangers (PHE) for general-purpose applications where good oil resistance is required. NBR gaskets are suitable for applications where the operating conditions do not involve high temperatures or exposure to aggressive chemicals. They are cost-effective and provide reliable sealing for a wide range of fluids in moderate temperature and pressure conditions.
