Product Description
Gaskets: The Hygienic Seal for Food Grade Plate Heat Exchangers
At the core of a food grade plate heat exchanger's hygienic design are the gaskets that create a tight, sanitary seal between the individual plates. These specialized gaskets play a critical role in maintaining the integrity of the heat transfer process and ensuring the safety of the food or beverage products.
Manufactured from FDA-approved, food-safe materials such as EPDM (Ethylene Propylene Diene Monomer) or nitrile rubber, the gaskets are specifically formulated to withstand the rigors of food processing environments. They must be able to resist the effects of high temperatures, aggressive cleaning agents, and exposure to a wide range of food-grade chemicals and acids without compromising their sealing properties.
The gasket design is carefully engineered to create a tight, leak-proof barrier between the product flow channels and the surrounding environment. This prevents any cross-contamination or mixing of the fluids, ensuring the final product remains pure and uncompromised. The gaskets also facilitate the easy dismantling and reassembly of the heat exchanger plates for thorough cleaning and sanitization.
By upholding the highest standards of food safety and hygiene, the specialized gaskets used in food grade plate heat exchangers are essential components that contribute to the overall reliability, efficiency, and regulatory compliance of these critical food processing systems.

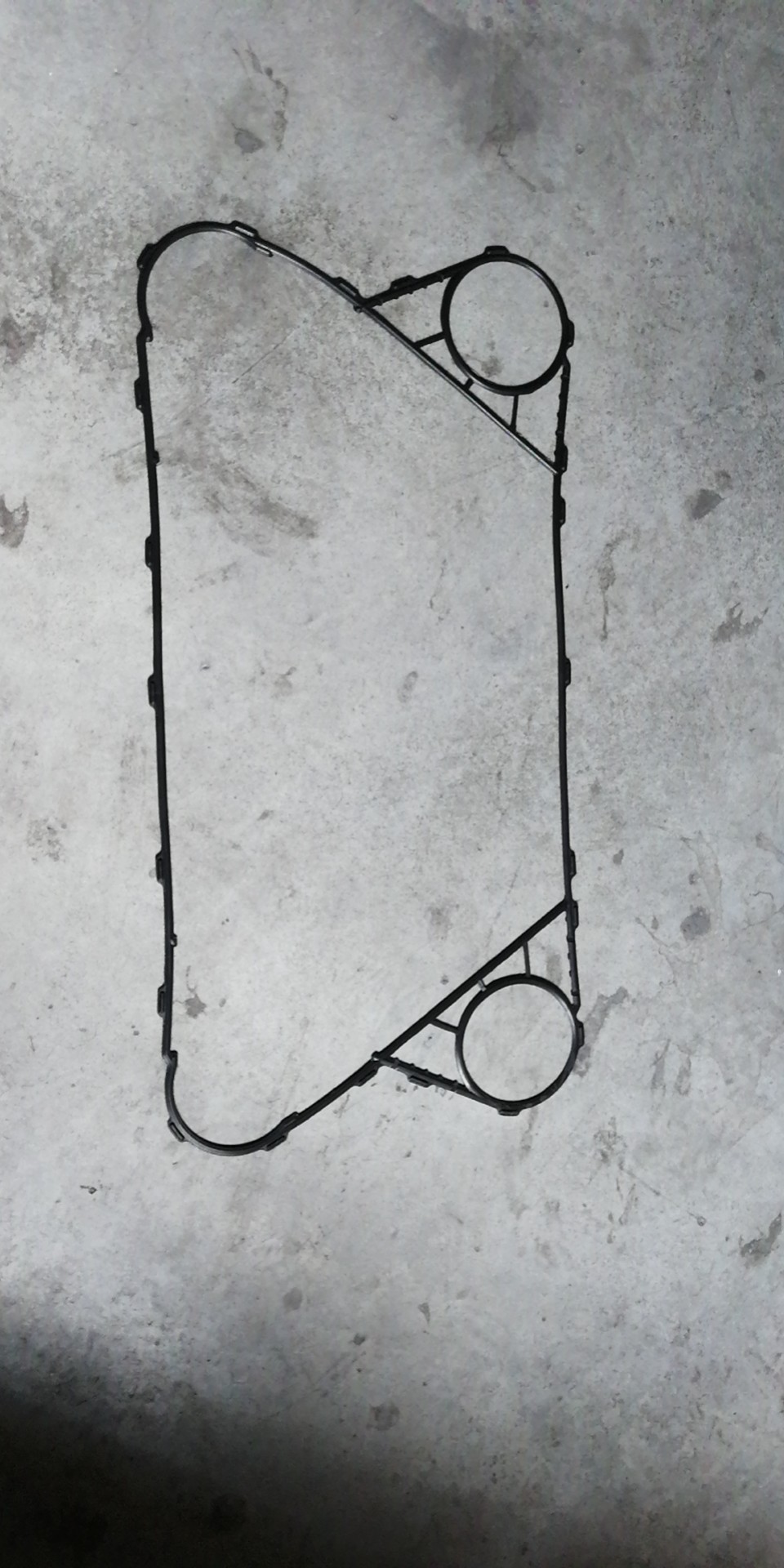

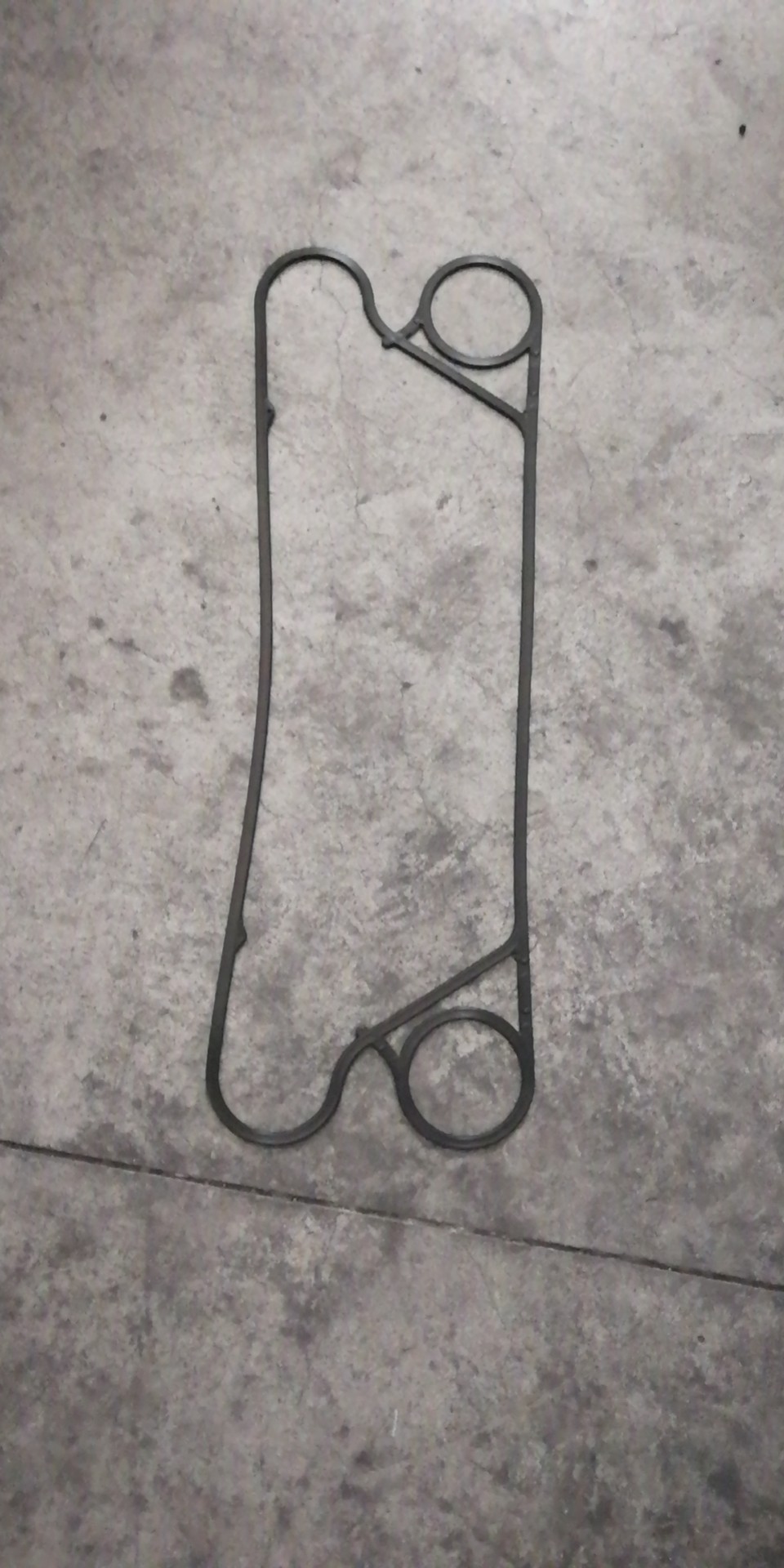

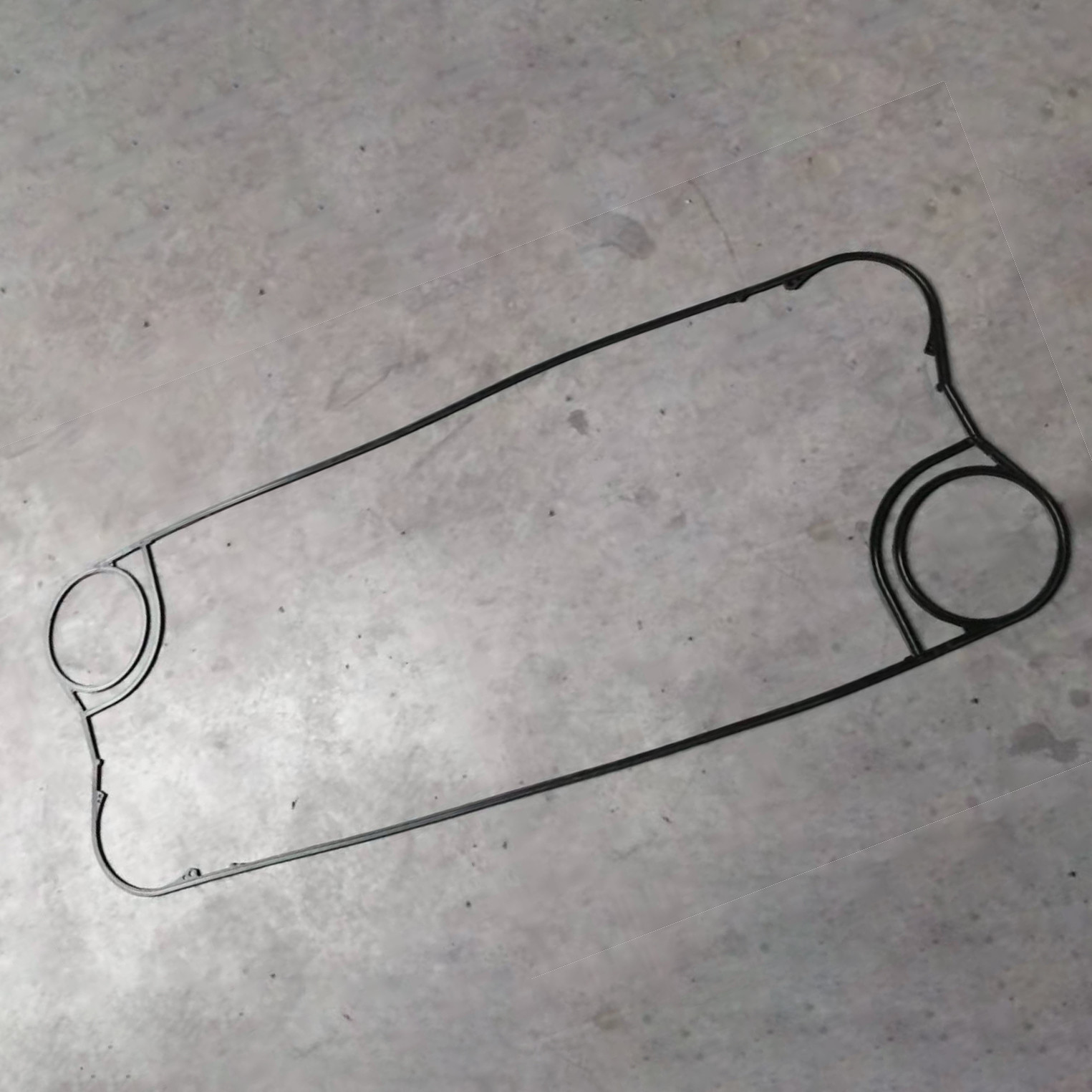

Heat Exchanger Gasket:
Heat exchanger gasket is essential for maintaining the integrity of the heat exchanger system, preventing fluid leakage, and enabling efficient heat transfer between the fluid streams.
The importance of the heat exchanger gasket in a heat exchanger cannot be overstated. The gasket plays a crucial role in ensuring the proper functioning of the heat exchanger by providing a tight and secure seal between the heat exchanger plates. This seal prevents fluid leakage and ensures efficient heat transfer between the two fluid streams within the heat exchanger.
The heat exchanger gasket works by being compressed between the plates, creating a barrier that separates the two fluid streams and prevents them from mixing. This not only maintains the integrity of the fluids but also ensures that heat transfer occurs effectively and without any loss due to leakage.
Heat exchanger gaskets are typically made from materials that can withstand the operating conditions of the heat exchanger, including temperature, pressure, and compatibility with the fluids being processed. Common materials for heat exchanger gaskets include elastomers such as EPDM, Nitrile (NBR), and Viton, as well as non-asbestos materials for high-temperature applications. The choice of gasket material depends on the specific requirements of the heat exchanger and the fluids being handled.
| Brand/Maker | Model |
| TRANTER | GC008,GL13,GC16,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91,GX100,GX140,GX145,GX180,GC16,GC26,GC42,GC51 |
| Item | plate heat exchanger gasket model list |
| Brand | Victory |
| Material | NBR HNBR EPDM HEPDM VITON FKM Silicone/CR/Neoprene |
| MOQ | 1 set |
| Package | carton |
| Warranty | one year |
| OEM | Supply |
| Material | applicable temp℃ fluid |
Application
| Material | Operating Temperature Range | Usage conditions |
| Nitrile Gaskets | ≤135℃ | Resistant to mineral, animal, vegetable oil and other non-polar media |
| Hydrogenated Nitrile Gaskets | -5℃-150℃ | Resistant to sulfur-containing crude oil, H2S-containing mixed media, high-temperature edible oil and other non-polar media |
| EPDM Gaskets | ≤160℃ | Resistant to hot water, water vapor, edible beverages, and high-temperature sterilization of milk |
| Solvent-based EPR Gaskets | -20℃-150℃ | Polar solvents and many other good solvents, such as lipid solvents. Dilute inorganic acids, alkalis, etc. |
| Universal Viton Gaskets | ≤180℃ | Non-polar mineral oil, lubricating oil and other alcohol-containing fuels |
| Special Fluorine Rubber Gaskets | 30℃-130℃ | Inorganic oxygen-containing acids such as high-concentration acids and bases |
Q&A
Q1: Does the gaskets product come with a warranty?
A1: Gasket are consumable accessories, and the replacement cycle is generally determined according to the specific conditions of use by the customer. It is related to the use environment, medium, temperature, etc. Usually we recommend purchasing more for replacement and backup purposes.
Q2: Is there a discount available for wholesale or bulk purchases?
Answer: Yes, we offer discounts for wholesale and bulk purchases. If you are interested in purchasing a large quantity of items or engaging in wholesale business, please contact our wholesale department or customer service team for information regarding wholesale discounts and minimum purchase quantities.
