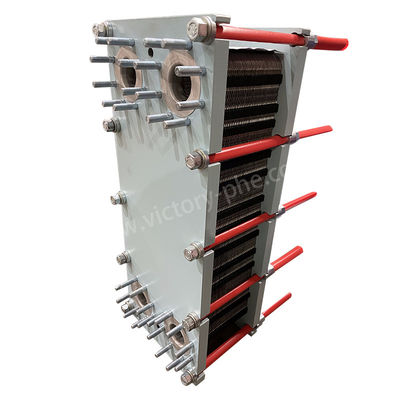

Industrial cooling heat exchanger with a nickel plate frame, designed in a plate heat exchanger (PHE) configuration

PRODUCT DESCRIPTION

Stainless Steel Water Treatment Plate Heat Exchanger For Industrial Cooling

Plate Heat Exchangers

A plate heat exchanger comprises a series of metal plates stacked together, each featuring specific corrugations. These plates create narrow rectangular channels, enabling efficient heat exchange between fluids, particularly in liquid-to-liquid and liquid-to-vapor applications.

Plate heat exchangers offer numerous advantages, including exceptional heat transfer efficiency, minimal thermal losses, compact and lightweight design, small footprint, versatility, and long service life. Compared to traditional tube heat exchangers, they achieve higher heat transfer coefficients while occupying less space. Additionally, they can achieve heat recovery rates exceeding 90%.

The distinctive design of plate heat exchangers promotes efficient heat transfer while minimizing pressure drop. The corrugated plates induce turbulence in fluid flow, enhancing heat transfer capabilities. Consequently, plate heat exchangers are widely favored across industries for various heating, cooling, and heat recovery processes.


According to the structure, plate heat exchangers can be classified into four main types:

Gasketed Plate Heat Exchangers, also referred to as removable plate heat exchangers, are composed of detachable metal plates sealed with gaskets. They are suitable for applications with lower flow rates and significant temperature variations.

Welded Plate Heat Exchangers are constructed with metal plates welded directly together to create a tightly sealed heat transfer surface. They are ideal for high-pressure and high-temperature environments.

Spiral Plate Heat Exchangers utilize a pair of spiral-shaped metal plates to create multiple channels for fluid separation and heat exchange.

Plate and Frame Heat Exchangers, also known as honeycomb heat exchangers, consist of corrugated metal plates stacked within a frame. Fluid flows through alternating channels between the plates, enabling efficient heat transfer.

Plate heat exchangers are widely utilized across a spectrum of industries:

1. Solar Energy: They are essential for effectively harnessing solar energy through collectors, facilitating the transfer of heat between solar fluid and working fluid to achieve optimal energy conversion.

2. Chemical Industry: They are integral to various chemical processes, including heat recovery, product cooling, and reaction temperature control, ensuring the efficient operation of reactors and distillation units.

3. Steel Industry: Plate heat exchangers are crucial for cooling and lubricating critical equipment such as rolling mills, blast furnaces, and quenching tanks, thereby maintaining optimal temperatures and extending equipment lifespan.

4. Metallurgical Industry: They are employed in heating and cooling processes in aluminum refining, ensuring precise temperature control and efficient energy utilization throughout production.

5. Machinery Manufacturing: These exchangers are utilized for cooling quenching liquids and lubricants in industrial equipment, ensuring consistent performance and extending machinery life.

6. Food Industry: Plate heat exchangers play a vital role in sterilization, pasteurization, and cooling processes in food processing plants, ensuring product safety, quality, and extending shelf-life.

7. Textile Industry: They contribute to heat recovery and cooling processes, optimizing energy efficiency and reducing environmental impact by recycling waste heat.

8. Paper Industry: Plate heat exchangers are essential for cooling and heat recovery applications in paper production, ensuring efficient operation while minimizing energy consumption and environmental footprint.

9. District Heating: They are utilized to transfer heat from power plant waste heat areas to residential and commercial buildings, providing efficient and sustainable heating solutions for urban communities.

10. Oil and Fat Industry: Plate heat exchangers are employed for precise temperature control during oil processing, including refining, fractionation, and packaging processes.

11. Power Industry: They are crucial for cooling systems in power plants, including condensers, turbine lubrication, and auxiliary equipment cooling, ensuring efficient and reliable operation.

12. Marine Applications: Plate heat exchangers are utilized for cooling systems in marine vessels, ensuring reliable performance and efficient operation in maritime environments.

13. Seawater Aquaculture: They contribute to heating seawater in hatcheries, providing optimal temperatures for fish and shellfish cultivation, thereby enhancing overall production efficiency.

14. Other Industries: Plate heat exchangers find wide usage in pharmaceutical, petroleum, ceramic, glass, cement, and geothermal applications, promoting efficient heat transfer, process optimization, and environmental sustainability.
