Product Description
TS6,TL6B Grade Plate Heat Exchanger With Thermal Mixing Technology Heat Exchanger Plate

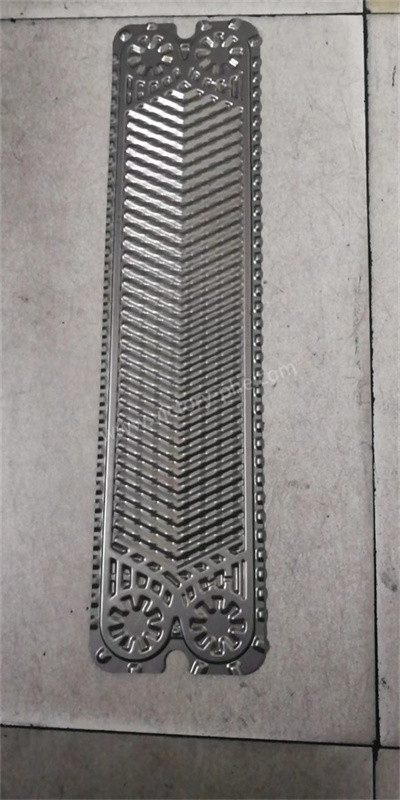

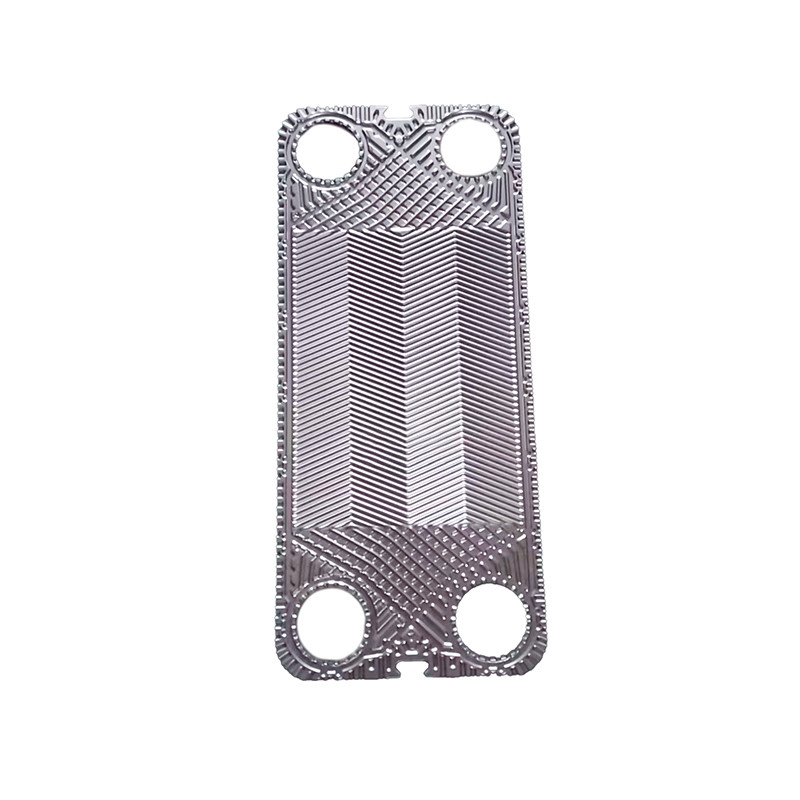

Heat Exchanger Plates
1The parameters required for plate heat exchanger selection mainly include: the composition of the two media, the temperature of the inlet and outlet, and the flow rate. If the flow cannot be provided, heat exchange must be provided. If it is used in the heating industry, the heat exchange area and the area where it is used can be provided without flow.
2. Its design principle is economical and reasonable. In order to achieve the heat exchange effect, under the same conditions, price is often the main criterion for many owners to consider which supplier to use. In this case, the choice of area and model is particularly important.
3. Our heat exchanger plates use thermal mixing technology, which can combine the heat transfer and pressure drop of the heat exchanger to make it operate at a better operating point. Internal bypass, dual flow channel technology and unequal flow cross-sectional area assembly provide a perfect solution for working conditions where the media flow rate on both sides is significantly different.
Heat Exchanger Plates material
1. Stainless steel SUS304 SUS316L
Purified water, river water, food oil, mineral oil
2. Industrial pure titanium and titanium-palladium alloyTi tanium and Pal ladium
Sea water, salt water, salt compounds
3. Hastelloy Alloy
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
4. Nickel
High temperature and high concentration caustic soda
| Brand | Model |
|
M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M,T20P,TL35B P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15B |
| Material | Specification |
| Stainless Steel | SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy | C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Applacations
The application areas of heat exchanger plates are as follows:
1. Widely used for Hotels
2. Garment Shops
3. Building Material Shops
4. Machinery Repair Shops
5. Manufacturing Plant
6. Food & Beverage Factory
7. Farms, Restaurant,Retail, Food Shop
8. Printing Shops, Construction works
9. Energy & Mining, Food & Beverage Shops
Q&A
Q: Can I customize samples of heat exchanger plates?
A: Yes,we welcome sample order to test and check quality.
Q : Can you accept mixed batch of different heat exchanger plates and OEM service?
A : Yes,we support mixed models and OEM service.
