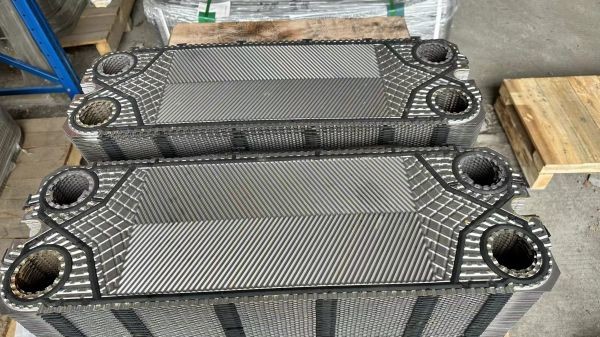

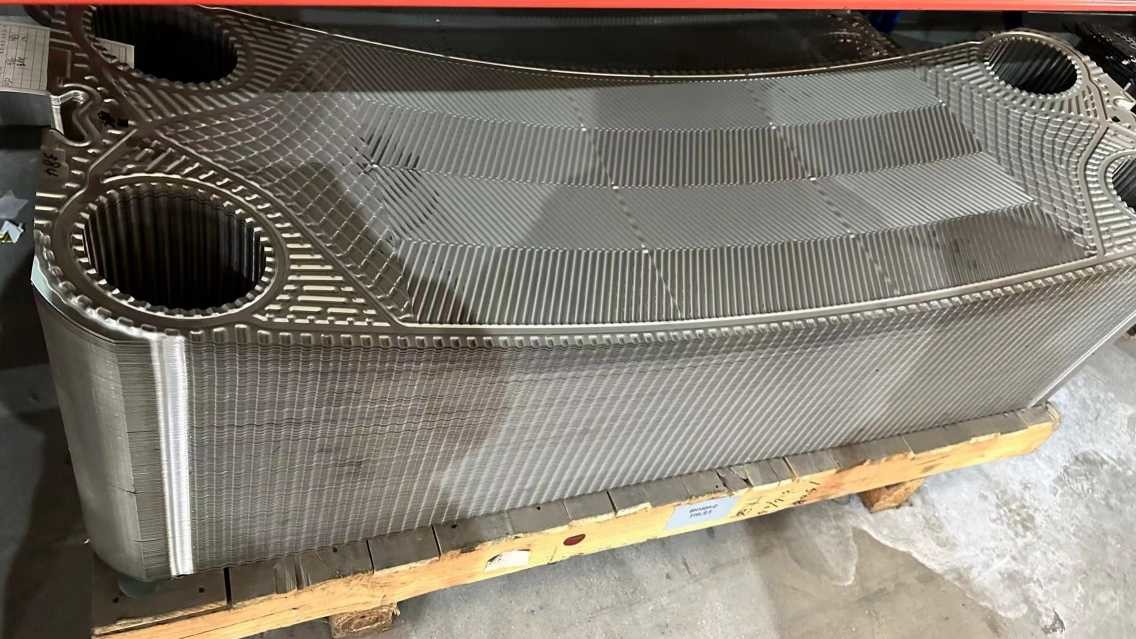

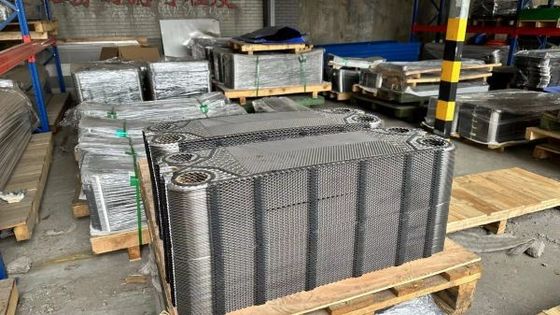

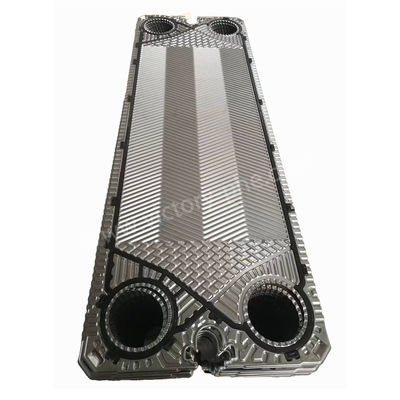

M15B M15M Hight Theta Heat Exchanger Plate With Gasket For Optimal Cooling

Product Description

M15B M15M Hight Theta Heat Exchanger Plate With Gasket For Optimal Cooling

Heat Exchanger Plates

Heat exchanger plates are components used in plate heat exchangers, which are devices designed to transfer heat from one fluid to another. These plates are typically made of metal and are arranged in a way that allows for efficient heat transfer between the two fluids while keeping them physically separated.

The need for heat exchanger plates arises from the requirement to efficiently transfer heat between two fluids without allowing them to mix. This is important in various industrial, commercial, and residential applications where the transfer of heat is essential for processes such as heating, cooling, and thermal energy recovery.

The key reasons for using heat exchanger plates for heat transfer include:

1. Efficient Heat Transfer: Heat exchanger plates are designed to maximize the surface area available for heat transfer between the two fluids, resulting in efficient and rapid thermal exchange.

2. Compact Design: Plate heat exchangers with heat exchanger plates offer a compact and space-efficient solution for heat transfer compared to traditional shell-and-tube heat exchangers.

3. Versatility: Heat exchanger plates can be configured in different patterns and designs to accommodate various fluid types, flow rates, and temperature differentials, making them versatile for a wide range of applications.

4. Energy Efficiency: By facilitating efficient heat transfer, heat exchanger plates contribute to energy savings and improved process efficiency in heating and cooling systems.

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate heat exchanger plate thickness configuration

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Production Process:

• Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
• Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
• Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
• Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
• Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.
•
