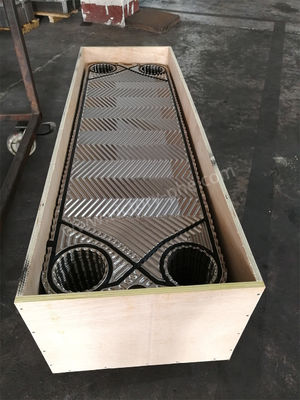

M15B M15M Hight Theta Heat Exchanger Plate With Gasket For Optimal Cooling
Heat Exchanger Plates
Heat exchanger plates serve a vital function as integral components within plate heat exchangers, facilitating the efficient transfer of heat between fluids. Typically composed of metal, these plates are strategically arranged to optimize heat exchange while ensuring fluid separation.
The demand for heat exchanger plates arises from the necessity to transfer heat between fluids efficiently, without any mixing. This requirement is crucial across various industrial, commercial, and residential settings where heat transfer is essential for processes like heating, cooling, and thermal energy recovery.
The primary advantages of utilizing heat exchanger plates for heat transfer include:
1. Improved Heat Transfer Efficiency: Heat exchanger plates are carefully engineered to maximize surface area, thereby enabling efficient and rapid thermal exchange between fluids.
2. Compact Design: Plate heat exchangers featuring heat exchanger plates offer a space-efficient solution for heat transfer compared to conventional shell-and-tube heat exchangers.
3. Versatility: Heat exchanger plates can be customized to accommodate various patterns and designs, allowing for adaptation to diverse fluid types, flow rates, and temperature differences. This versatility enhances their applicability across a wide range of industries and applications.
4. Energy Efficiency: By facilitating efficient heat transfer, heat exchanger plates contribute to energy conservation and improved operational efficiency in heating and cooling systems, resulting in reduced energy consumption and lower operating costs.
| Brand | Model |
|
M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M, T20P,TL35B P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15BW |
| Material | Specification |
| Stainless Steel |
SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy |
C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.
Applacations
| Plate material | Suitable for fluids |
| Stainless steel (SUS304.316, etc.) | Purified water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt compounds |
| 20Cr,18Ni,6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Plate heat exchanger plate thickness configuration
Production Process:
Material Preparation: Premium-grade stainless steel plates are meticulously chosen for their exceptional corrosion resistance and thermal conductivity, ensuring alignment with product specifications and design parameters.
Cutting and Leveling: Advanced machinery accurately cuts stainless steel plates according to design specifications. Subsequently, a leveling treatment is applied to achieve a uniform and smooth surface.
Stamping: Hydraulic press stamping creates specific herringbone patterns on leveled plates to enhance turbulence coefficient for efficient heat transfer. Stringent control measures prevent plate deformation or damage during stamping.
Surface Treatment: Various techniques such as polishing, sandblasting, or coating are meticulously applied to enhance corrosion resistance and heat transfer performance, selected based on specific requirements.
Assembly and Inspection: Plates are meticulously assembled according to design specifications, resulting in either a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger using argon arc welding. Precision fitting and absence of gaps are ensured during assembly. Subsequently, a rigorous performance pressure test is conducted, followed by issuance of a comprehensive factory report to verify compliance with stringent quality standards.
