Versatile Heat Exchanger Plate for Various Flow Rates and Temperature Differentials

Product Description

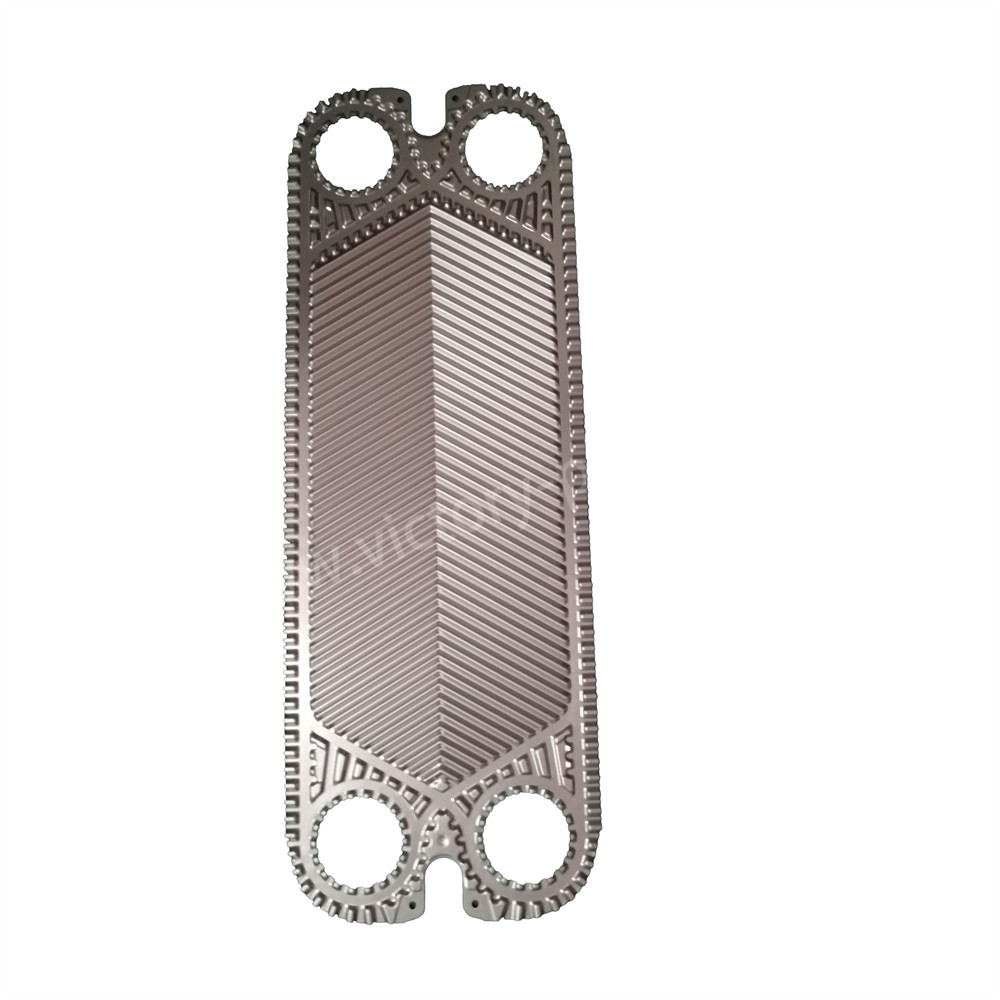

Versatile Heat Exchanger Plate for Various Flow Rates and Temperature Differentials

Heat Exchanger Plates

Our Versatile Heat Exchanger Plate is designed to accommodate a wide range of flow rates and temperature differentials, making it an ideal solution for diverse industrial and commercial applications.

Key Features:

1. Adaptability: The plate is engineered to handle varying flow rates and temperature differentials, offering unparalleled adaptability in heat exchange processes.

2. Efficiency: With its advanced design, the heat exchanger plate maximizes thermal efficiency, ensuring optimal heat transfer across different operating conditions.

3. Durable Construction: Constructed from high-quality, corrosion-resistant materials, the plate promises longevity and reliability even in demanding environments.

4. Customizable Configurations: It offers customizable configurations to address specific flow rate and temperature requirements, allowing for tailored solutions to diverse heat transfer challenges.

5. Optimized Performance: The design promotes turbulence and enhanced flow patterns, resulting in improved heat transfer performance and minimized fouling.

6. Wide Application Range: Suitable for applications across industries such as HVAC, chemical processing, power generation, food and beverage, and more.

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate heat exchanger plate thickness configuration

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Production Process:

• Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
• Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
• Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
• Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
• Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.
•
